Coaters

MSK-AFA-HC100

MSK-AFA-III

MSK-AFA-II-VC

MSK-AFA-HC100 is an NRTL standard mini tape casting coater with the bottom vacuum chuck, which is heat able up to 100ºC and Film applicator is included. It is designed for the fixed thickness and extra thin polymer coating or conductive ceramic film on various substrates.

MSK-AFA-II-VC is a Large Automatic Film Coater with a Vacuum chuck ( 300 mm W x 600mm L) designed to produce films with consistent thickness by using thickness adjustable applicators. It has a unique driving system to produce a smooth coating on all types of materials. The vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when coating on the thin substrate and making uniform tape casting. One 250 mm width gap adjustable applicator is included. This machine can be used for research on SOFC and Li-Ion battery electrode coating.

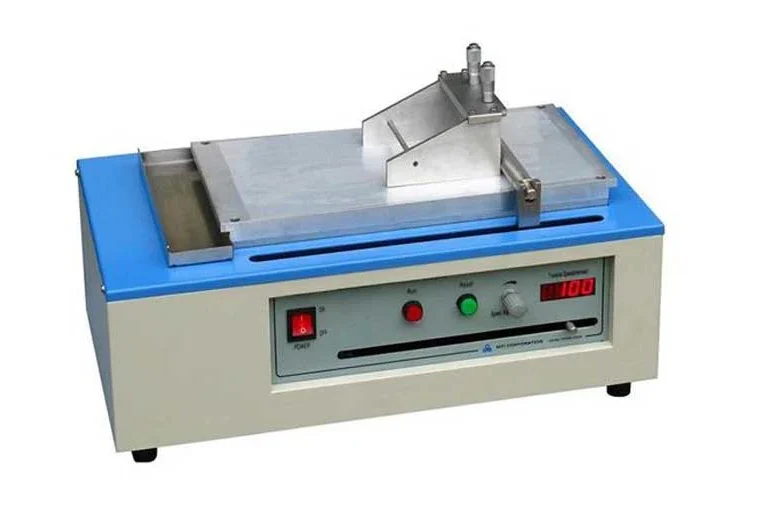

MSK-AFA-III is a compact tape-casting coater with various heating designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place. One 100 mm width adjustable micrometer applicator (doctor-blade). The heating plate with the digital controller either on top or bottom is optional for drying up to 100°C with +/-1°C temperature accuracy. This equipment can be used by researchers on ceramic tape castings and Li-Ion battery electrode coating.

For more technical details:

https://mtixtl.com/products/msk-afa-hc100

For more technical details:

https://mtixtl.com/products/msk-afa-ii-vc

For more technical details:

https://mtixtl.com/products/msk-afa-iii

5185,5 € (net)

6260,5 € (net)

7233 € (net)

You can find all MTI Battery Coaters here:

https://mtixtl.com/collections/battery-coaters
