Electrode Slurry Mixers

MSK-SFM-16

MSK-SFM-7

MSK-SFM-16HS

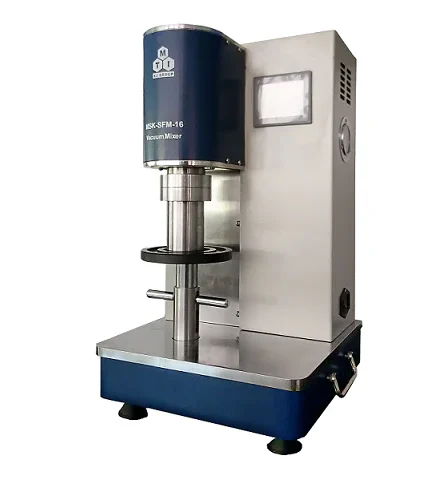

MSK-SFM-16 is a compact dual-shaft planetary vacuum mixer. Compared to single-shaft models, the dual-shaft mixer comes with three segments of programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing the gas bubble, which can vacuum the mixing container to -0.08 MPa. One 150ml SS container is included and 50 and 500ml container is optional.

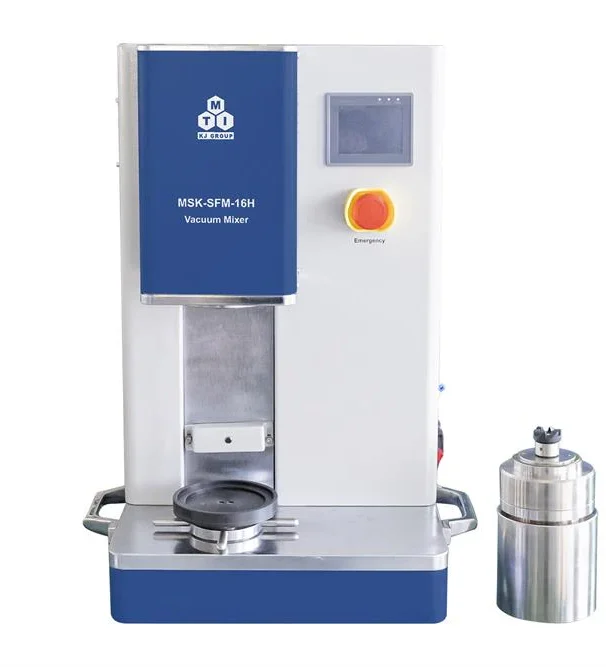

MSK-SFM-16H is a compact dual-shaft planetary vacuum mixer. Compared to single-shaft models, the dual-shaft mixer comes with three segments of programmable mixing speed from 300 - 1500 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing the gas bubble, which can vacuum the mixing container to - 75 KPa.

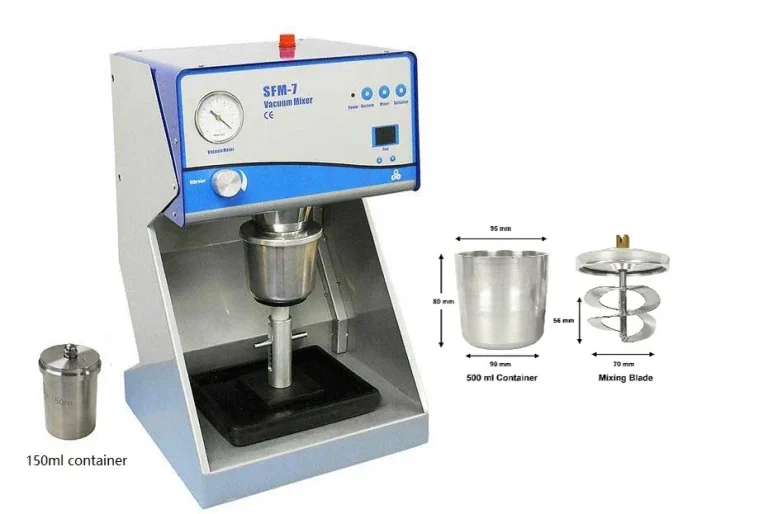

MSK-SFM-7 is designed to produce coating slurry by mixing a small batch of chemicals and compounds in two tanks of 150 ml & 500 ml under vacuum. It has a built-in pump that can vacuum the mixing container to -0.08Mpa and a mixing speed of 320rpm. The vibration plate is located at the bottom to remove the gas bubble before vacuum mixing and disperse the slurry after mixing. It is excellent for preparing battery electrode paste and various ceramic materials in a material research lab. It is compact so that put in a glovebox with N2 gas (No Ar).

For more technical details:

https://mtixtl.com/products/msk-sfm-16

For more technical details:

https://mtixtl.com/products/msk-sfm-16hs

For more technical details:

https://mtixtl.com/products/msk-sfm-7

3617,1 € (net)

Price: RFQ

You can find all MTI Electrode Slurry Mixers here:

https://mtixtl.com/collections/battery-slurry-mixers
