Heating Modules
K1100MD220
OTF-1200SMD110
HE1750T30330

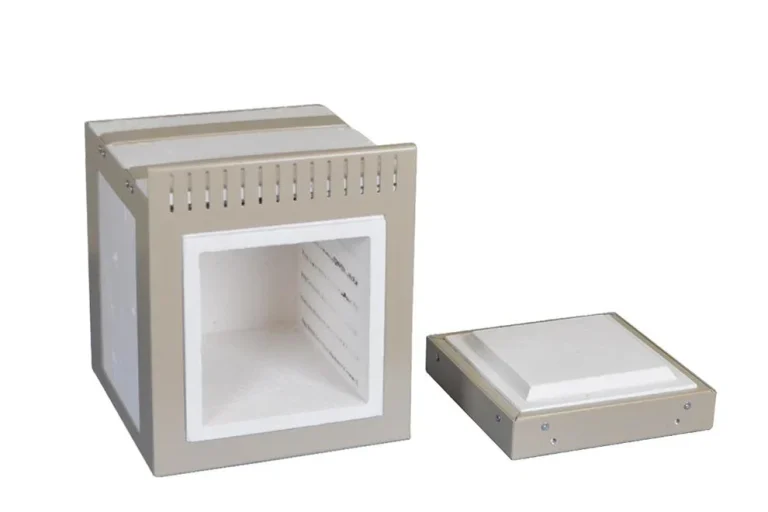

This furnace module (liner heating elements inside) is designed for easy replacement of the KSL-1100X-S liner and heating elements.
- Material: Alumina chamber with heating coils embedded
- Outside: 160mmL x 160mmW x 160mmH (6.3"L x 6.3"W x 6.3"H)
- Chamber: 105mmL x 105mmW x 105mmH (4"L x 4"W x 4"H)
- Cover: 145mmL x 145mmW x 40mmH (5.7"L x 5.7"W x 1.6"H)

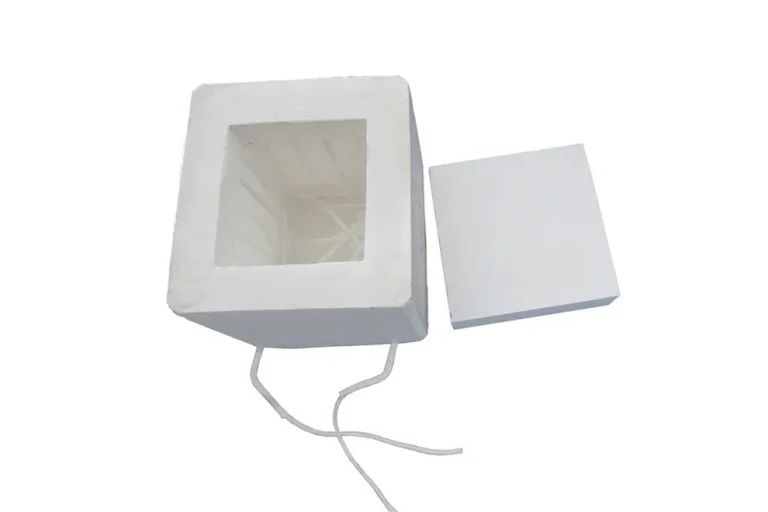

This furnace module (liner&heating elements inside) is designed for easy replacement of the KSL-1200X-J-UL liner and heating elements.
- Working Voltage: 220 +/- 10% VAC
- Material: Alumina chamber with heating coils embedded
- Outside: 240mmD x 230mmW x 270mmH (9.25"Dx 9"W x 10.5"H)
- Chamber: 180mmD x 150mmW x 150mmH (7"D x 6"W x 6"H)
- Chamber door: 200mmD x 200mmW x 40mmH (8"D x 8"W x 1.5"H)
- Shipping Weight: 19 lbs
- Shipping Dimensions: 18"x12"x12"

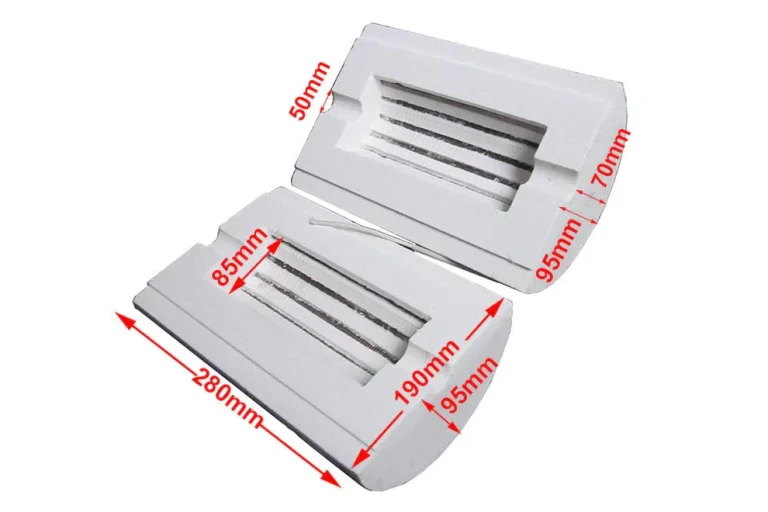

This furnace module (liner&heating elements inside) is designed for easy replacement of the OTF-1200X-S liner and heating elements.
- Material: Fiberous Alumina chamber with heating coils embedded
- Heating Element: Ni-Cr-Al resistance wire
- Max. working remperature: 1200oC
- Standard tube szie : 2" ( 50 mm )
- Customize Tube size : 1" ( 25 mm )
1125,9 € (net)
1027,6 € (net)
554,4 € (net)
You can find all MTI Furnace Heating Modules here:
https://mtixtl.com/en-euea/collections/furnace-heating-modules
