Sliding Furnace
OTF-1200X-S-DVD
OTF-1200X-SL50
OTF-1500X-II-50SL

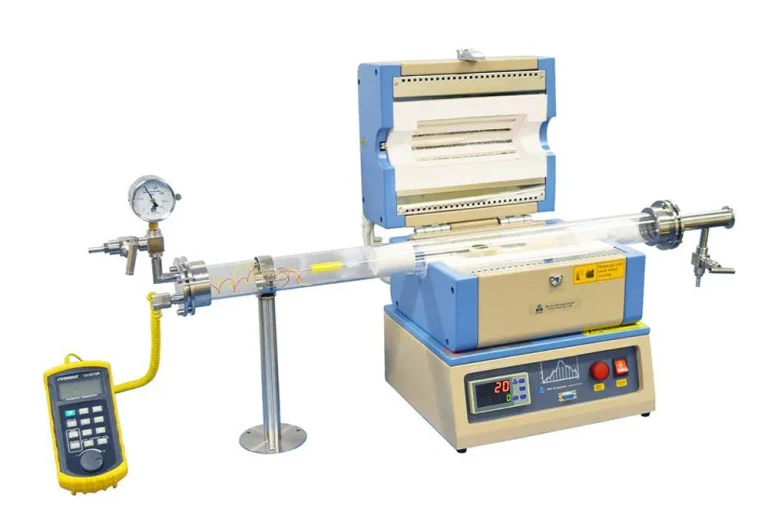

OTF-1200X-S-DVD is a compact 2" tube furnace with a sample sliding inside the tube via magnet manually, which is designed for direct vaporizing deposition (DVD) or rapid thermal processing (RTP) under various atmospheres for 2D material growth with max. the working temperature of 1200°C

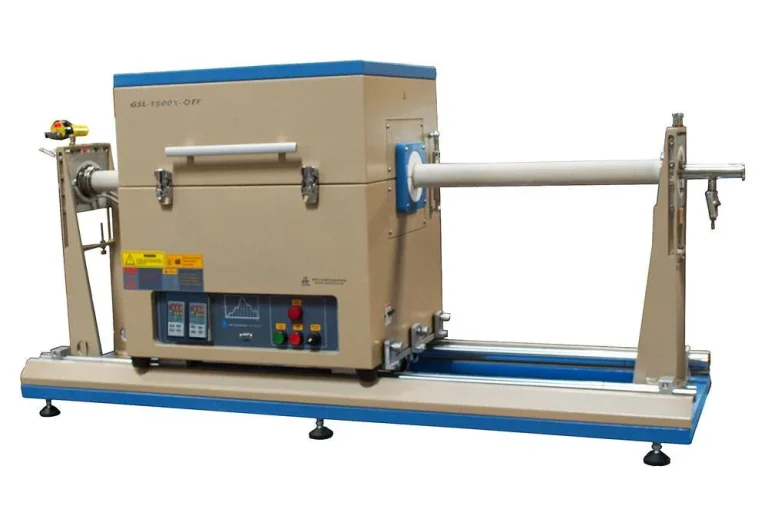

OTF-1500X-II-50SL is a 1500°C Two Zone slide-able tube furnace with 50mm OD x 55"L mullite tube and vacuum flanges. One pair of sliding rail is installed on the bottom of the furnace. The furnace can be moved manually from one side to the other for achieving a max. heating or cooling rate up to 60°C/min. For the fastest heating, the furnace may be pre-heated to the desired temperature and then be slid to the sample's position. As for the fastest cooling, the furnace can be slid to another side after sample heating is completed. This system provides a solution for rapid thermal processing at the lowest cost.

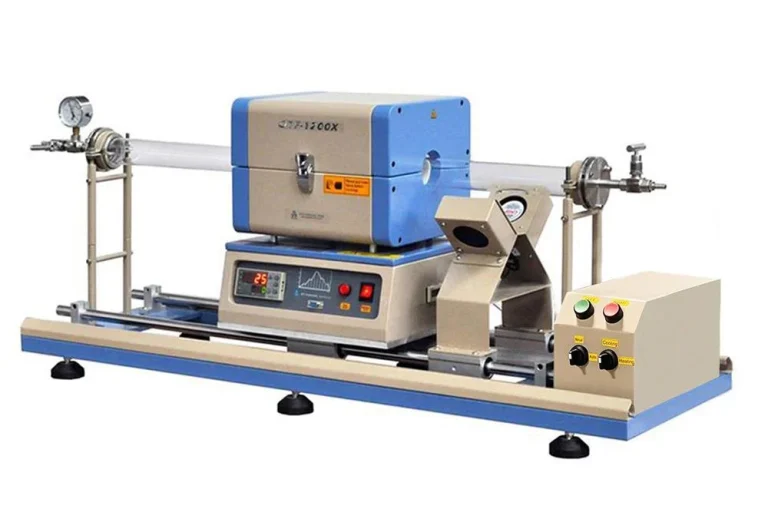

OTF-1200X-50-SL is a compact automatic sliding tube furnace with 2" OD x 36" L Quartz tube and flanges with 1200°C max. working temperature. The automatic sliding mechanism allows the furnace to slide from one side to the other for achieving the max. heating and cooling rates of > 100°C/min.
For achieving the fastest heating, the furnace may be pre-heated to the desired temperature and then get slid to the sample's position. As for the fastest cooling, the furnace can be slid to another side after sample heating is completed. Moreover, the heating and cooling rates may reach 15°C/s under vacuum or inert gas conditions. This furnace provides an alternative for rapid thermal processing at the lowest cost.
Price: RFQ
Price: RFQ
5712,1 (net)
You can find all MTI Sliding Furnace here:
