CVD Furnace
OTF-1200XIII-PGEP
GSL-1800X-PGEP
OTF-1200X-II-PEC4

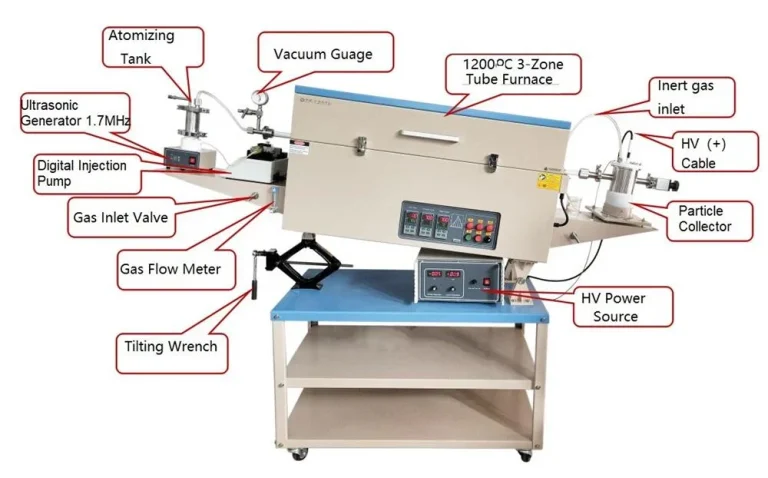

OTF-1200X-PGEP is a versatile ultrasonic spray furnace system designed for nano, core-shell structured particle synthesis. The system consists of three major modules: 1.7MHz ultrasonic enhanced bubbler, 1200°C Max. 3-zone heating tube furnace, and Electrostatic Precipitator. The processing steps of a particle include aerosol generation, thermal decomposition, and nanopowder collection. Such a system enables advanced synthetic method that provides control over particle size, morphology, and nano/microstructure.

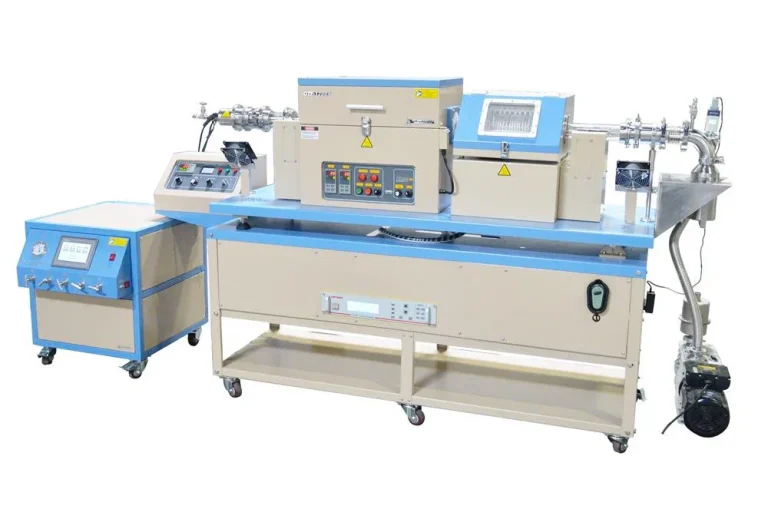

OTF-1200X-II-PEC4 is a 1200ºC Rotatable Two-Zone Plasma-Enhanced Hybrid-Physical-Chemical Vapor Deposition (PE-HPCVD) system. It consists of a Tiltable Frame, 300W RF Plasma Generator & Matching Network, Up-Stream Source Evaporation Boat with Power Supply, Four-Channel MFC Gas Delivery, and High-Performance Vacuum Pump. Such a complete system is an excellent tool for heat-treating inorganic compound powders with superior temperature and surface coating uniformity (e.g. prepare Li-Ion battery cathode powders with conductive coatings on the surface).

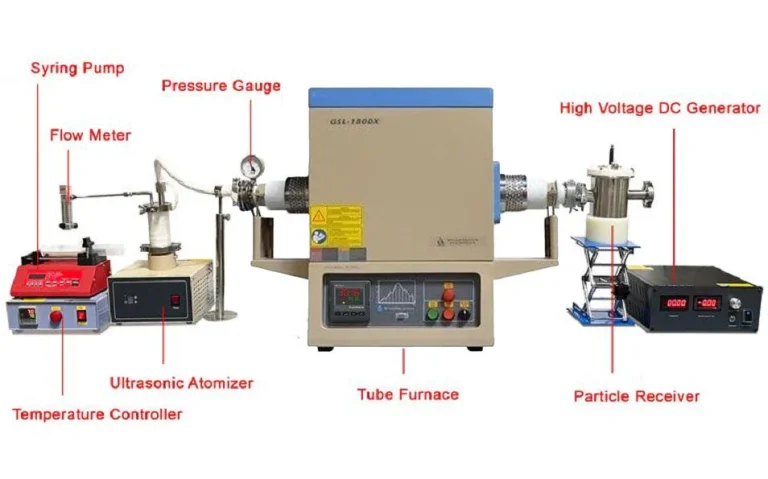

GSL-1800X-PGEP is a versatile synthetic system designed for nanostructured oxide materials. Three major modules (Ultrasonic Enhanced Bubbler, Tube Furnace, and Electrostatic Precipitator) are employed on three processing steps including aerosol generation, thermal decomposition, and nanopowder collection. Such a system enables an advanced synthetic method that provides control over particle size, morphology, and nano/microstructure.
Price: RFQ
Price: RFQ
Price: RFQ
You can find all MTI CVD Furnace here:
