Horizontal
OTF-1200X
OTF-1600X-UL
OTF-1200X-III-80-F3LV
OTF-1200X-UL furnace is configurated to meet UL/CSA certificate standards. The furnace can adopt a 60, 75, 80, or 100mm O.D quartz tube and a pair of stainless steel vacuum sealing flanges with needle valves & gauge allow heating samples under vacuum or gas flow conditions. The temperature of this tube furnace is controlled by a high-precision digital controller which provides 30 programmable segments with +/- 1°C accuracy. The max. working temperature is 1200°C.
OTF-1200X-III-80-F3LV is a splittable three zones Tube furnace with a mechanical vacuum pump & digital vacuum gauge and three channels gas flowing system, which can achieve vacuum up to 10-2 torr and mix 1-3 types of gases for CVD or diffusion. This furnace system also includes an anti-corrosive Pirani Capacitance Diaphragm Gauge to enable vacuum measurements with aggressive gases.

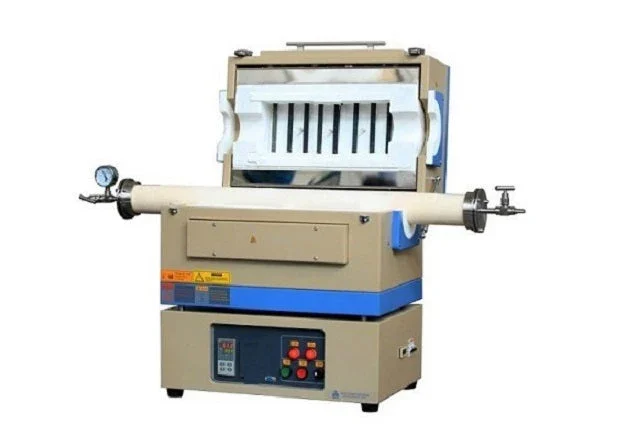

OTF-1600X-I series furnace is UL/TUV standard split-able alumina tube furnaces with Kanthal GLOBAR SG 1650 grade SiC Heating Elements. The furnace can install with 60 or 80mm O.D high-quality alumina tubes along with a pair of smart stainless steel vacuum sealing flanges that can take either a valve/gauge which allows for heating samples under vacuum or flowing gas conditions up to 1600°C. The precision temperature controller can provide 30 segments of heating and cooling steps with +/- 1°C accuracy.
Price: RFQ
Price: RFQ
6557,8 € (net)
You can find all MTI Horizontal Tube Furnace here:
