Hydrogen Furnace
OTF-1200X-II-H2-60

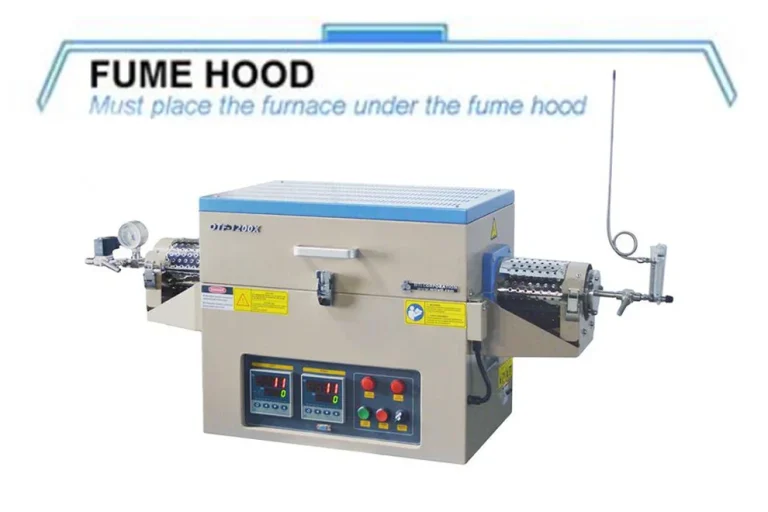

OTF-1200X-II-H2 is a compact hydrogen tube furnace for the heat treatment of oxidation-sensitive materials. The two heating zones provides a temperature gradient or a wide range of temperature uniformity. Flange fixtures and quartz tube covers are installed to provide additional safety protection in case of emergency. A Honeywell hydrogen leak detector is applied to trigger the close of the hydrogen inlet valve and the power cutoff of heating elements immediately once hydrogen leak is detected.
KSL-1600X-H5E

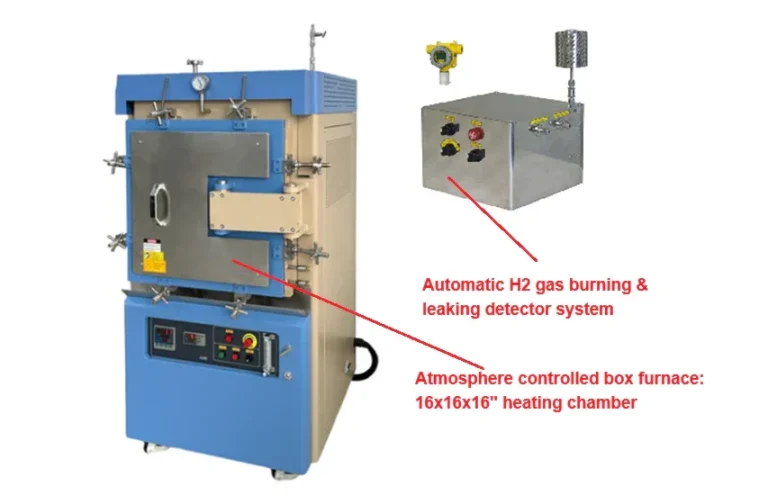

KSL-1600X-H5E is a economic box furnace designed for material synthesis under hydrogen or inert gas atmosphere up to 1700 ºC with a chamber dimension of 16" x 16" x 16". The furnace consists of high-quality alumina fiber bricks and three sides heated Mo-alloy coil with a vacuum-sealed steel case with a water cooling jacket and automatic H2 burning system. It is an ideal tool for preparing new materials that require a reduced atmosphere, and also heat-treating materials under Ar gas.
KSL-1600X-H5

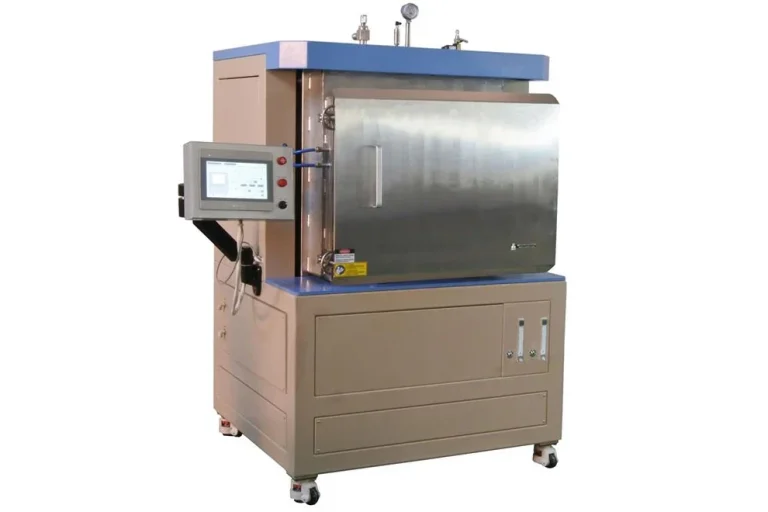

KSL-1600X-H5 is a large box furnace designed for material synthesis under hydrogen or inert gas atmosphere up to 1700 ºC with a chamber dimension of 16" x 16" x 16". The furnace consists of high-quality alumina fiber bricks and three sides heated Mo-alloy coil with a vacuum-sealed steel case with a water cooling jacket and automatic H2 burning system. It is an ideal tool for preparing new materials that require a reduced atmosphere, such as phosphorous and Ti alloy, and also heat-treating materials under Ar gas.
You can find all MTI Hydrogen Furnace here:
