Rolling Presses
MSK-HRP-MR100DC
MSK-HRP-02
MSK-HRP-04

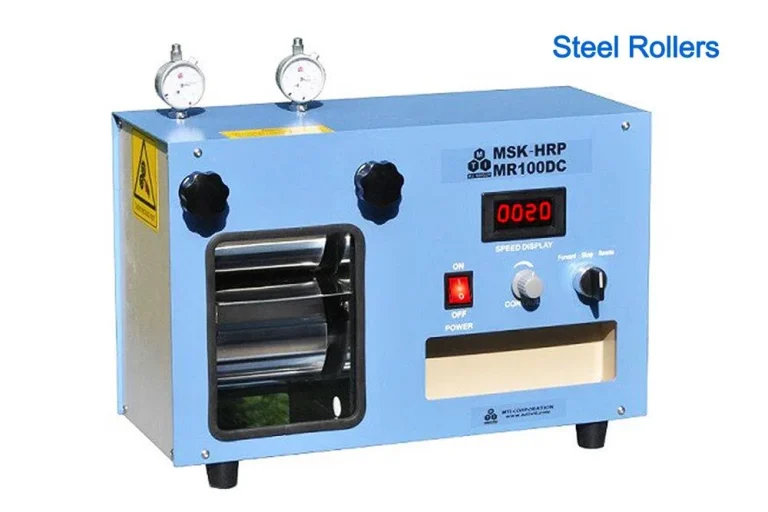

MSK-HRP-MR100DC is a UL/CSA ready electric rolling press with variable speed 24VDC gear motor and UL certified switch power supply, which can be used from 110V- 220VAC under Argon gas glovebox. It has dual rollers of 100 mm Dia. x 100mm width and is an ideal rolling press for preparing electrode sheets for Li-Ion batteries research after coating and drying. (Since 11/29/2016, MR100DC ceramic coated roller option is available.)

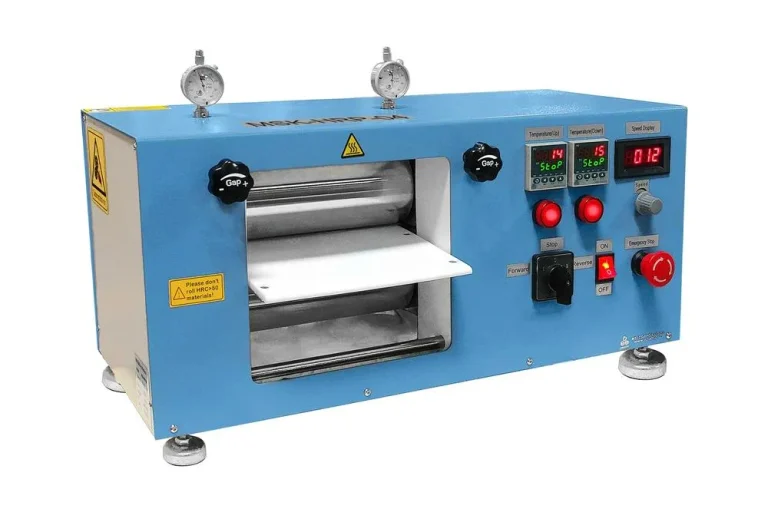

MSK-HRP-04 is a desktop Heated Rolling Press with two independent temperature controllers up to Max. 200 working temperature, which is designed for preparing the thin electrode for flexible battery, and any soft materials, and can be used under Ar gas safely. (Warning: is not suitable for RC > 45 materials)

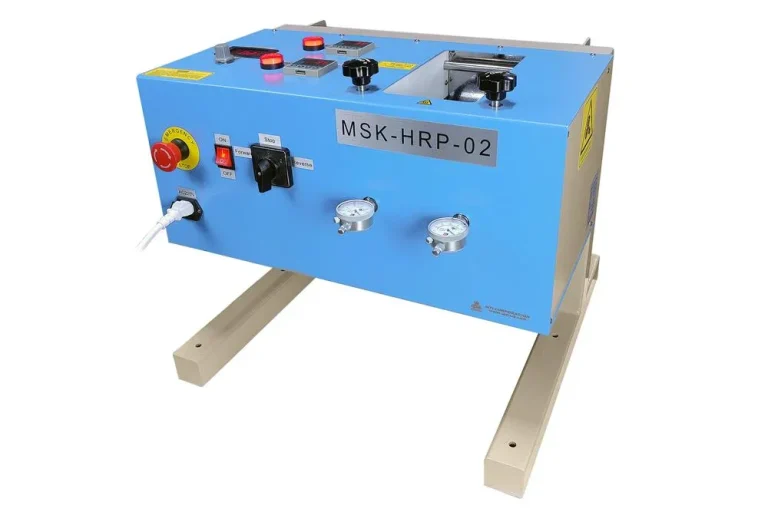

MSK-HRP-02 Vertical Hot Rolling Press features a pair of 100mm wide steel rollers with independent temperature control up to 200°C. Its vertical rolling position allows users to "gravity feed" flexible films/tapes. Such a compact calendar machine can be put in Ar gas glove-box and very useful for preparing flexible battery electrode sheet for Li-ion / Soli Metal-Air battery research.
Price: RFQ
Price: RFQ
5712,7 € (net)
You can find all MTI Rolling Presses here:
