Cold Isostatic Press (CIP)
CIP20D
YLJ-CIP-15
CIP30-E300
CIP20D (updated from CIP15-DIE) is a complete CIP Die Set for Cold Isostatic Press. It has a 22mm ID hydraulic chamber made by ultra-strength alloy, which can provide isostatic pressure up to 400 MPa via a hydraulic press. It is an excellent tool to prepare high-density compound pellets and a small diameter rod.

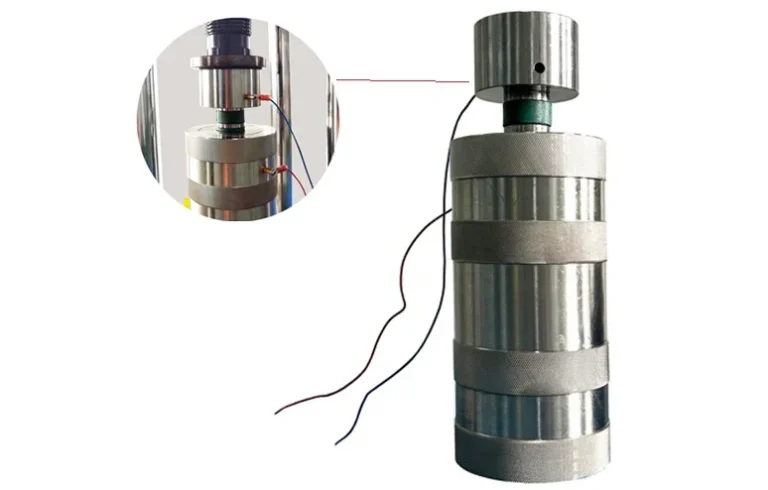

CIP30-E300 is CIP or WIP Die for solid-state battery research. It has a 30mm ID x110mm hydraulic chamber made of ultra-strength alloy with two electrode terminals. It can provide isostatic hydraulic pressure up to 330 MPa to study SSB properties vs. pressure and temperature.

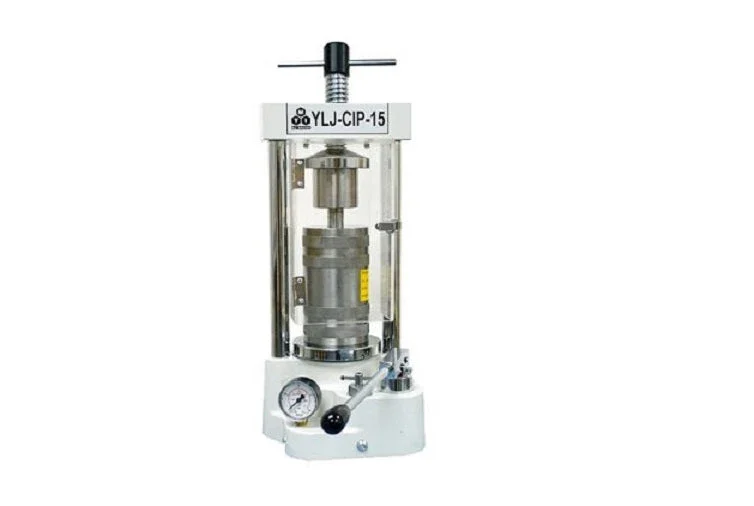

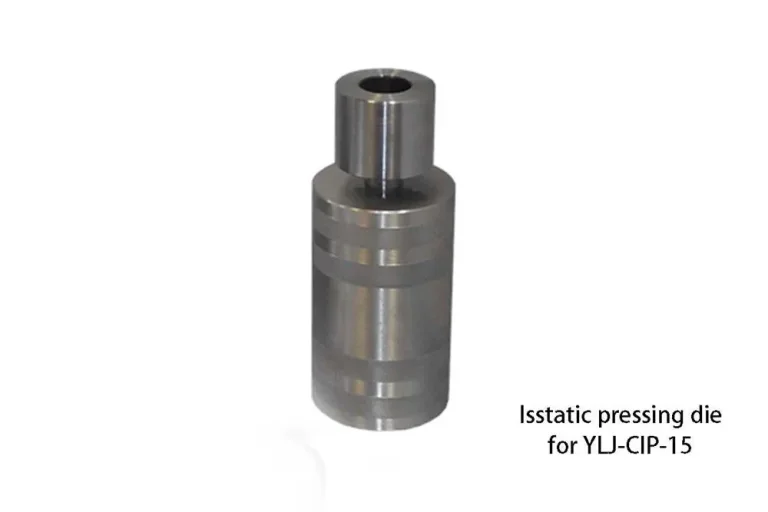

YLJ-CIP-15 is the smallest cold isostatic pressing (CIP) in the world. It has a 22mm ID hydraulic chamber made by ultra-strength alloy, which can provide isostatic pressure up to 400 Mpa via a 15T hydraulic press. It is an excellent tool to prepare high-density compound pellets and a small-diameter rod. CIP-15 has a small footprint and can be placed in a glove box to prepare air-sensitive materials. A plastic protection cover is included. The machine also can be used as a pellet press.
5712,7 € (net)
3309 € (net)
2283,7 € (net)
You can find all MTI CIP here:
