Spilt Testing Cells
PSC-SiN
STC15BEW
EQ-PSPC

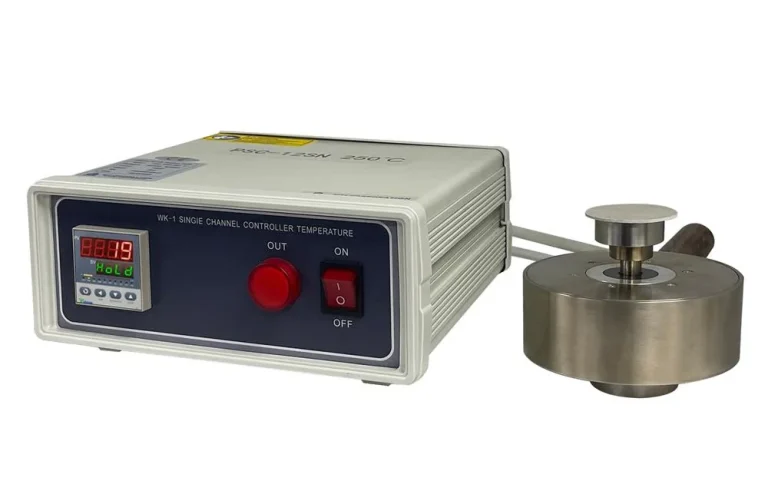

This is a splitable coin cell set with a sleeve made of silicon nitride (Si3N4) with optional inner diameters of 12mm or 20mm and continued temperature up to 400°C. The split cell can be placed in a lab press with pressure up to 100 MPa and can be added to a heating jacket with a high working temperature up to 250ºC. It is designed to research the effect of pressure on solid-state battery performance and it can also be used for easy coin cell assembling without any screw and crimping tools.

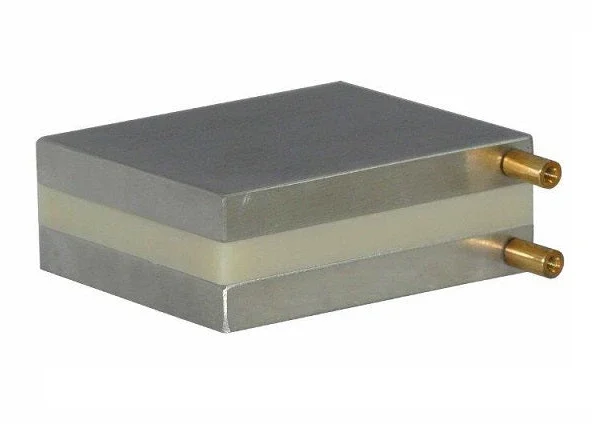

EQ-PSPC is a split-able pouch cell with applied pressure up to 10 MPa, which is designed for researching the effect of pressure on solid/liquid state battery performance. It can also be used to make solid-state pouch cells via a compressing jig. It can be customized into various sizes upon request.

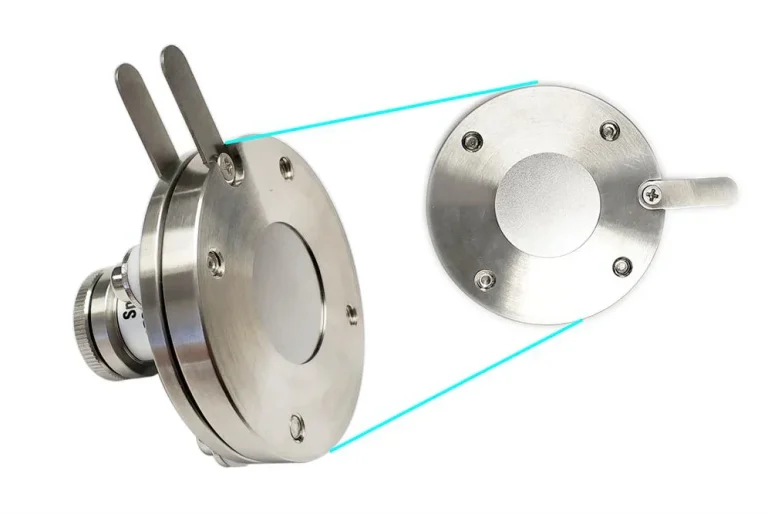

EQ-STC-BEW split-able test cell features a 35 mm Dia. Beryllium (Be) Window which allows in-situ XRD analysis of battery material phase transitions during the charging/discharging cycles. Such a cell can accommodate various sizes (19, 20, and 24 mm diameter) of electrodes and separators. It is designed for easy & quick assembling tests of the electrode materials of rechargeable batteries.
2283,7 € (net)
741,8 € (net)
4684 € (net)
You can find all MTI Split Testing Cells here:
