Coaters
MSK-AFA-HC100
MSK-AFA-III
MSK-AFA-200
MSK-AFA-HC100 is an NRTL standard mini tape casting coater with the bottom vacuum chuck, which is heat able up to 100ºC and Film applicator is included. It is designed for the fixed thickness and extra thin polymer coating or conductive ceramic film on various substrates.

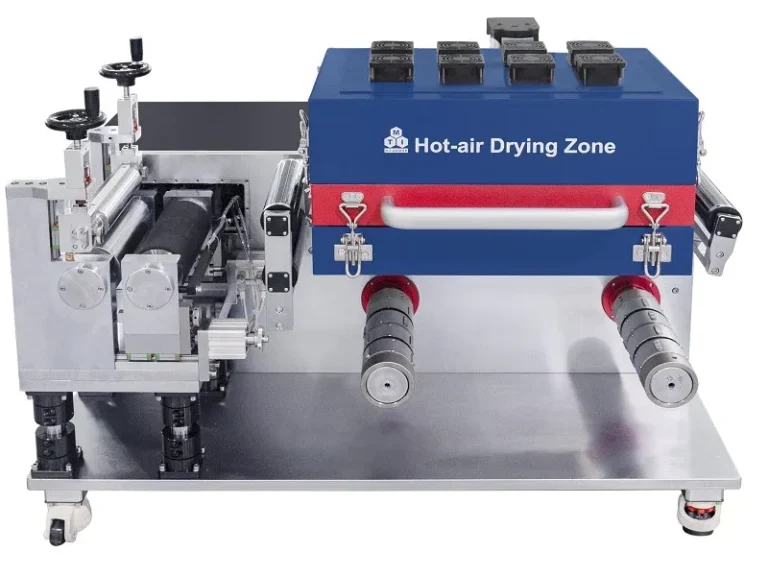

MSK-AFA-200 is a Roll-to-Roll continuous coat with 6 optional coating heads or head combinations for film coating with a small footprint for materials research labs.
This system integrates the functions/ features of reeling in & out, slurry feeder, coating blade, baking oven, and final electrode winding (reeling in).
It can coat electrode sheets up to 160mm in width and 500 meters in length automatically.
MSK-AFA-III is a compact tape-casting coater with various heating designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place. One 100 mm width adjustable micrometer applicator (doctor-blade). The heating plate with the digital controller either on top or bottom is optional for drying up to 100°C with +/-1°C temperature accuracy. This equipment can be used by researchers on ceramic tape castings and Li-Ion battery electrode coating.
4912,6 € (net)
Price: RFQ
6852,3 € (net)
You can find all MTI Battery Coaters here:
